Daier LAS3-16F-11EP 16mm Power Mark LED Push Button Switch

FOB Reference Price:Get Latest Price
US $2-5 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Daier
Model Number:
LAS3-16F-11EP
Protection Level:
IP65, IP65
Max. Current:
3A, 3A
Max. Voltage:
250VAC, 250VAC
Item:
Waterproof Switch 240V
Material:
Metal
Function:
Momentary/Latch
Certificate:
CE,Rohs
Electrical Life:
100,000Cycles
OEM&ODM:
YES
Free Sample:
YES
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50PCS/BOX
Port
Shanghai/Ningbo
Lead Time :
Shipped in 7 days after payment

Daier LAS3-16F-11EP 16mm Power Mark LED Push Button Switch



Product Description



 LAS3-16F-11EP (1).jpgLAS3-16F-11EP (2).jpg

16MM 19MM.jpg

1 (27).jpg



TECHNICAL DATASHEET



Whether with LED

With LED

Operation Type

Momentary/Latch

Crust Material

Stainless Steel/Copper Plated Ni/Aluminium/Copper Plated Cr/Copper Plated with Black

Color

Metal

Degree of Protection

IP65

Contact Type

1NO /1NC

Maximum Voltage

250VAC

Thermal Current

3A

Minimum Applicable Load

5V AC/DC,1mA

Contact Material

Silver Plated

Terminal Style

.110 Solder/Quick Connect

Operating Temperature

-25°C ~+55°C

Operating Humidity

45%~85% RH

Contact Resistance

50mΩ   max.

Insulation Resistance

100mΩ  min. (500V DC megger )

Vibration Resistance

10~55HZ, amplitude 1.2mm p-p

Degree of Protection

>10g

Electrical Life

100,000 operations min. (at full rated load)

Mechanical Life

Maintained:1,000,000 operations min.

Momentary:1,000,000 operations min.

Dielectrical Life

Switch Unit: 2,000VAC,1 minute between terminals of same pole;

             1,000VAC,1minute between contact and lamp terminals.

             Illumination Unit:2,000VAC,1min. Between live part/ground

Soldering Temperature

20W/5 seconds or 260 °C/3 seconds



.jpg

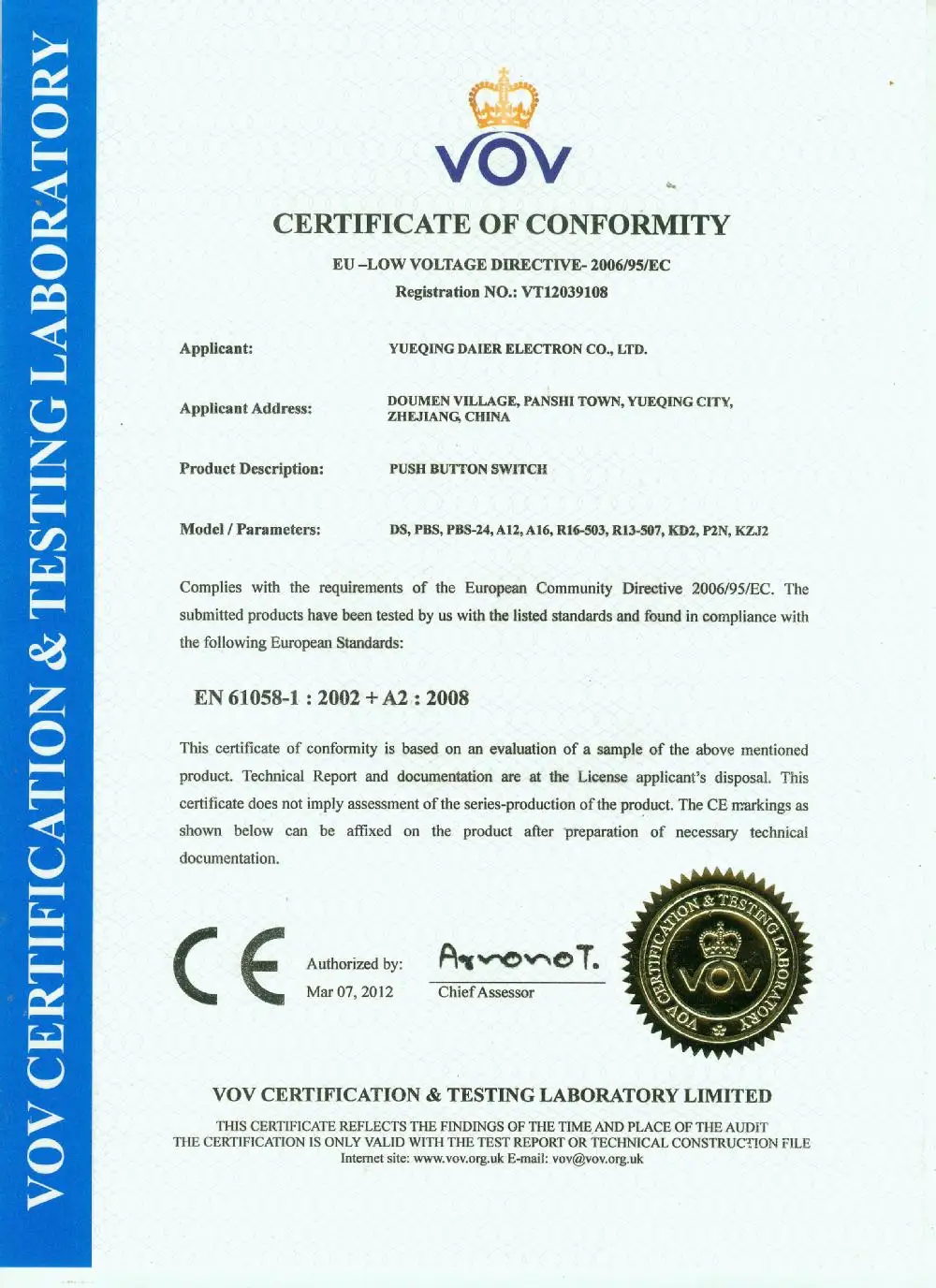

CERTIFICATIONS





PUSH BUTTON SW.jpg





Packaging & Shipping

1 (1).jpg1 (2).jpg

PE]`FQL1BDCTC(}%{)1LT{4.jpg ZG9TOKP49S`E[]AV4194C.jpg

PAYMENT AND SHIPMENT



L/C, Paypal,T/T,Westernunion,MoneyGram ,or other method.

Ship worldwide by sea, air, DHL, UPS,TNT, FEDEX and so on.

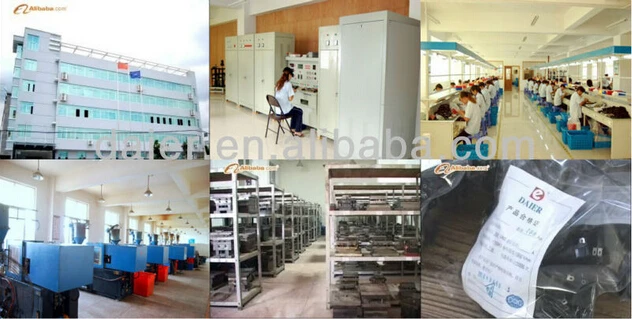

 PRODUCING DEPARTMENTS






Our Services

  Our  Advantage

1)Professional team, standard processes, standard production, quality products.

2)Safety, on-time delivery, credit suppliers.

3) Custom  Available



Others

Please kindly inform us which items you are interested, and the best price will be provided you .

We will reply you ASAP after receipting of your inquiry .

Any questions about more items, please feel free to contact us.

We are sincerely looking forward to establish cooperative relationship with you.

Free sample is available !

If you need any parts, please kindly send us your drawings or sample for quotation.



Company Information



P(VJMRR(WHC}U`JD)5X0.jpg ABOUT US
Yueqing Daier Electron Co., Ltd is a professional manufacturer of electrical switches in Yueqing, China. Yueqing is famous and ranked as "the city of electronics of China", so we share the best electronics resources and talents, and have excellent logistics chains too.

We are engaged in producing 9 categories and about 2,000 models of switches and etc. Most of our products have passed safety certifications as UL, cULus, CE, CCC, CQC. and lots of our products are made with RoHS compliant materials.
80% of our products are exported to Europe, North and South America. We satisfy all our customers with advanced products, competitive prices, fast delivery and one-stop service.

With a principle of being creative, advanced and honest, we are always improving our products and services to better satisfy you customers. We believe it's our mission to boost our customer's business, and then our customers will reward us with leadership sales and long-term relationships.

Join us, and we will be your best choice! Waterproof Switch 240V Waterproof Switch 240V Waterproof Switch 240V Waterproof Switch 240V Waterproof Switch 240V
